A Better Way to Measure and Mark
Simple measuring and marking habits can make shelves, fixtures, hardware, and repairs more accurate from the start.
Measure with consistency
Many repair mistakes begin before a tool ever touches the material. A measurement taken from the wrong reference point, a mark that is too wide, or a line that is not square can affect every step that follows.
Good measuring is less about working slowly and more about following a consistent process.
Build Accuracy Into the Layout
Begin With One Reference Edge
Whenever possible, take related measurements from the same edge or surface. Measuring from different sides can introduce small differences that create alignment problems.
A single reference edge is especially useful when installing shelves, brackets, hinges, handles, and other hardware that needs to line up accurately.
Measure, Then Confirm
Check an important measurement before cutting, drilling, or fastening. Confirm the dimension, make the mark, then verify it once more against the original reference point.
This extra check takes very little time and can prevent material waste or misplaced holes.
Use a Clear, Precise Mark
A thick line makes it difficult to know exactly where the cut or hole should begin. Use a sharp pencil for general layout work and make a fine mark when greater precision is required.
For drilling, a small center mark can also help keep the bit positioned correctly when you begin.
03 / STRAIGHT LINES
Keep Lines Square
When marking across timber, panels, or other straight material, use a square rather than relying on sight alone.
A square helps create a consistent 90-degree reference line and is particularly useful for cuts, bracket positions, cabinet hardware, and repeated fastening points.
For longer layouts, check the line at more than one point before committing to the work.
Account for the Width of the Cut
When cutting material, remember that the blade removes material as it passes through the workpiece.
If a finished piece must remain at a specific length, place the cut on the correct side of the measurement line rather than directly through the center without considering the blade width.
The same principle applies to other tools that remove material.
Use Repeated References for Repeated Work
If several parts need the same measurement, avoid measuring each one independently when a template, spacer, or reference piece can be used.
A simple spacer can help maintain consistent distances between brackets, handles, hinges, or fasteners. For repeated cuts, a clearly marked reference piece can reduce cumulative measuring errors.
06 / REAL CONDITIONS
Check the Workpiece Itself
Not every board, wall, corner, or surface is perfectly straight or square.
Before laying out a project, check the actual conditions. A wall may vary slightly from one end to the other, and timber may have edges that are not perfectly true.
Measure the real installation area rather than assuming every surface matches the intended dimensions.
Reliable Routine
Build a Consistent Measuring Process
Accurate work often comes from small habits repeated carefully. Measuring and marking correctly at the beginning makes every later step easier to control.
- Choose a reference edge.
- Confirm the required dimension.
- Make a fine mark.
- Use a square where needed.
- Recheck before cutting or drilling.
- Keep repeated measurements consistent.

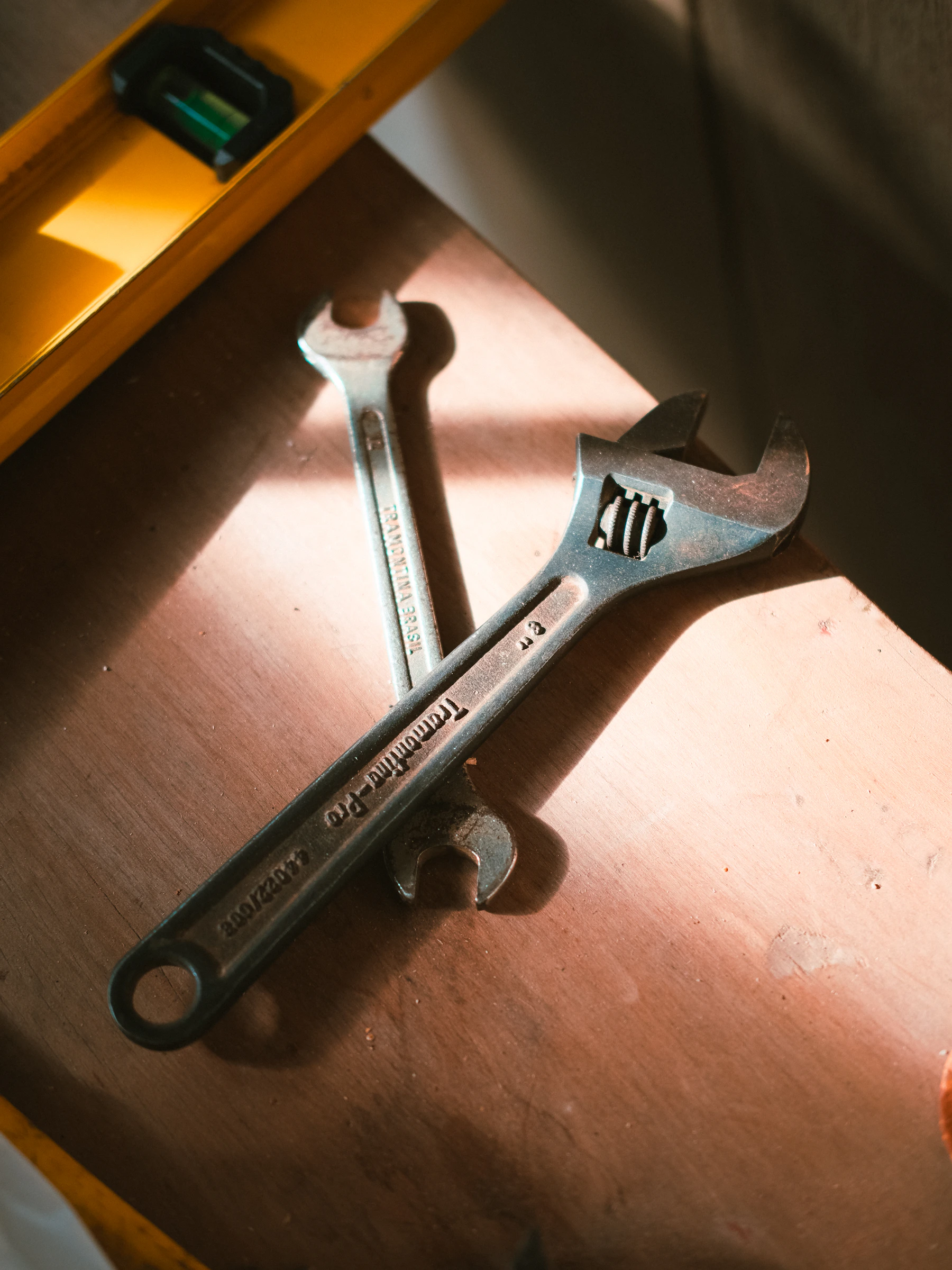

Keep a tape measure, square, pencil, and level together in your regular work area so layout tools are always ready before drilling, cutting, or installation begins.
